PLATE COMPACTOR - PC60-PG160

Model:
FIND A RESELLER
DOWNLOAD DATA SHEET
DOWNLOAD MANUAL

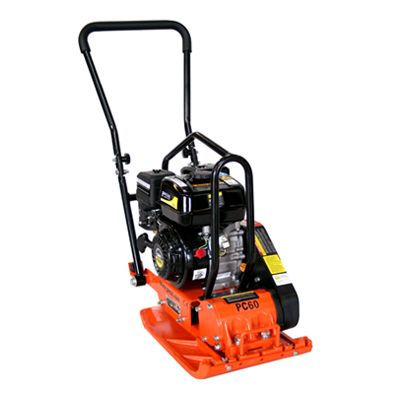

One diraction plate compactor PC60-PG160

  • Iron-cast heavy duty plate
  • Durable and powerful engine
  • Ergonomic handle allows its easy transportation
  • Anti vibration pads protecting engine
  • In our offer you can also find elastomer pad for paving

PC60-PG160 - Plate compactor
PC60-PG160 - Plate compactor

PARAMETERVALUE
Operating weight 60 kg
Tamping / vibration frequency 5600 vpm
Centrifugal force 10.5 kN
Maximum efficiency 265 m²/h
Plate size 520x350 mm
Traveling speed ⩽40 cm/s
Fuel tank capacity 3.6 l
PARAMETERVALUE
Operating weight 60 kg
Tamping / vibration frequency 5600 vpm
Centrifugal force 10.5 kN
Maximum efficiency 265 m²/h
Plate size 520x350 mm
Traveling speed ⩽40 cm/s
Fuel tank capacity 3.6 l
PG160
PARAMETERVALUE
Engine displacement 163 cm³
Max power 3.6 kW / 4.8 kW
Max torque 10.3 Nm / 2500 rpm
Starting system Recoil
Engine type 4-stroke, OHV, gasoline engine
Number and arrangement of cylinders Single-cylinder
Rated power 3.4 kW / 4.6 Hp
Fuel consumption ≤1.9 l/h
Net weight ≤15.0 kg
Oveall dimensions 362x312x335 mm
