NEW PRODUCT

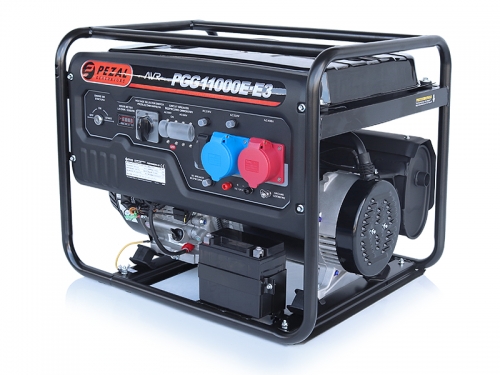

MULTIPHASE GENERATOR - PGG11000E-E3 Model:
Choose model KDE16EA KDE12EA KDE19EA KDE3500E KDE3500X KDE6500E KDE6700TA KDE6700TA0 KDE12000EA KDE12000TA KGE12E KGE2500E KGE6500E KNE5500E PGG2800X PGG6500E PGG6500X PGG8000E PGG8000X PGG2200X-H PGG2800E KGE6500ED KGE12ED PGG3000X PGG3000E PGG5500X-H PGG11000EA PGG3100X PGG3100E
PARAMETER VALUE Max power
13 kVA / 13 kW
Max power 3~
10.6 kVA / 8.5 kW
Rated power
12 kVA / 12 kW
Rated power 3~
10.0 kVA / 8.0 kW
Starting system
Recoil + electric starter
Voltage regulation type
Automatic voltage regulator (AVR)
Rated voltage
230V / 400V
Rated current 3~
14.4 A
Max power 1~
8.5 kVA / 8.5 kW
Rated power 1~
8.0 kVA / 8.0 kW
Rated current of 1~
34.8 A
Frequency
50 Hz
Battery capacity
-
Fuel tank capacity
25 l
Full tank working time at 100% load
8 h
Oveall dimensions
681x546x550 mm
Net weight
≤89 kg
