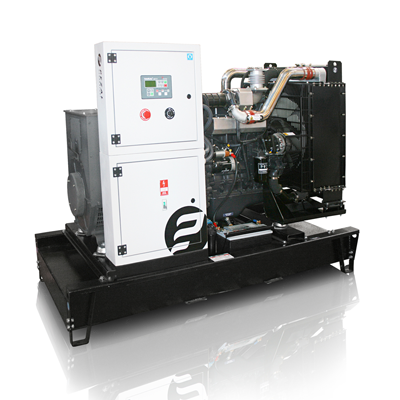

OPEN FRAME GENERATOR - PDE100E3 Model:
Choose model PDE22E3 PDE31E3 PDE40E3 PDE50E3 PDE60E3 PDE60E3-3 PDE85E3 PDE120E3 PDE140E3 PDE180E3 PDE200E3-3 PDE250E3 PDE313E3 PDE160E3 PDE100E3-3 PDE80E3 PDE250E3-3 PDE40E3-3 PDE300E3
PARAMETER VALUE Max power LTP (cosφ=0.8)
110 kVA / 88 kW
Rated power PRP (cosφ=0.8)
100kVA / 80kW
Rated current
144 A
Rated voltage
400 V
Frequency
50 Hz
Fuel tank capacity
265 l
Full tank working time at 100% load
12,4 mth
Wymiary netto (dłxszerxwys)
2160x1050x1530 mm
Generator net weigth
-
PARAMETER VALUE Max power LTP (cosφ=0.8)
110 kVA / 88 kW
Rated power PRP (cosφ=0.8)
100kVA / 80kW
Rated current
144 A
Rated voltage
400 V
Frequency
50 Hz
Fuel tank capacity
265 l
Full tank working time at 100% load
12,4 mth
Wymiary netto (dłxszerxwys)
2160x1050x1530 mm
Generator net weigth
-
Silnik Diesel - PD4105ZIA1
PARAMETER VALUE DIESEL ENGINE Exhaust gases emission class
Stage II
Engine rotation speed
1500 obr/min
Number and arrangement of cylinders
Inline-four engine
Układ zasilania silnika
bezpośredni wtrysk
Użycie powietrza
7,39 m³/min
Exhaust gas flow
16,3 m³/min
Exhaust gas max temperature
600 °C
Speed regulation type
electronic
Speed regulation range
0 - 1,5 %
Displacement
4,3 l
PRP power (ISO 3046)
105 kW
Electrical installation
24 VDC
PARAMETER VALUE GENERATOR Type of generator
Self-excited synchronous brushless
Number of poles / type of connection
4 / star
Uzwojenie odporne na środowisko
wilgotne / słone
Windings insulation class
H
Stopień ochrony
IP23
Voltage regulation
electronic - AVR
Stabilność napięcia
± 1 %
Short-term overload resistance
10 s (300%In)
THD (no load)
2 %
Efficiency
90,4 %
Panel - InteliLite IL3 AMF25
