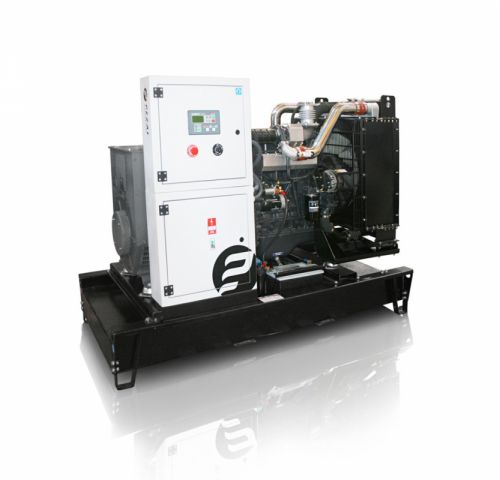

OPEN FRAME GENERATOR - PDE300E3

Model:
PDE300E3  - Open frame generator
PDE300E3  - Open frame generator

PARAMETERVALUE
Max power LTP (cosφ=0.8) 330 kVA / 264 kW
Rated power PRP (cosφ=0.8) 300 kVA / 240 kW
Rated current 433 A
Rated voltage 400 V
Frequency 50 Hz
Fuel tank capacity 730 l
Full tank working time at 100% load 11,6 mth
Wymiary netto (dłxszerxwys) 3270x1400x2030 mm
Generator net weigth -
PARAMETERVALUE
Max power LTP (cosφ=0.8) 330 kVA / 264 kW
Rated power PRP (cosφ=0.8) 300 kVA / 240 kW
Rated current 433 A
Rated voltage 400 V
Frequency 50 Hz
Fuel tank capacity 730 l
Full tank working time at 100% load 11,6 mth
Wymiary netto (dłxszerxwys) 3270x1400x2030 mm
Generator net weigth -
Silnik Diesel - PD6128ZIA0
PARAMETERVALUE
DIESEL ENGINE
Exhaust gases emission class Stage II
Engine rotation speed 1500 obr/min
Number and arrangement of cylinders Straight-six engine
Układ zasilania silnika bezpośredni wtrysk
Użycie powietrza 17,3 m³/min
Exhaust gas flow 43,9 m³/min
Exhaust gas max temperature 600 °C
Speed regulation range 0 - 1 %
Displacement 11,8 l
PRP power (ISO 3046) 268 kW
Electrical installation 24 VDC
Prądnica - PPA313-260A
PARAMETERVALUE
GENERATOR
Type of generator Self-excited synchronous brushless
Number of poles / type of connection 4 / star
Uzwojenie odporne na środowisko wilgotne / słone
Windings insulation class H
Stopień ochrony IP23
Voltage regulation electronic - AVR
Stabilność napięcia ± 1 %
Short-term overload resistance 10 s (300%In)
THD (no load)< 2 %
Efficiency 93 %
Panel - InteliLite IL3 AMF25

Brak parametrów
