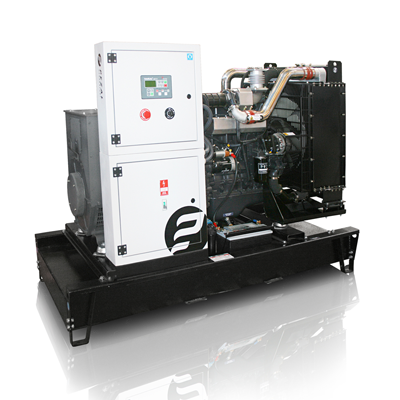

WATERPROOF / SILENT GENERATOR - PDE120RS3 Model:
Choose model PDE22RS3 PDE31RS3 PDE40RS3 PDE40RS3 PDE50RS3 PDE60RS3 PDE85RS3 PDE100RS3 PDE140RS3 PDE180RS3 PDE250RS3
PARAMETER VALUE Max power LTP (cosφ=0.8)
132 kVA / 106 kW
Rated power PRP (cosφ=0.8)
120 kVA / 96 kW
Rated current
173 A
Rated voltage
400 V
Frequency
50 Hz
Fuel tank capacity
265 l
Full tank working time at 100% load
10,0 mth
Wymiary netto (dłxszerxwys)
2160x1050x1530 mm
Generator net weigth
-
PARAMETER VALUE Max power LTP (cosφ=0.8)
132 kVA / 106 kW
Rated power PRP (cosφ=0.8)
120 kVA / 96 kW
Rated current
173 A
Rated voltage
400 V
Frequency
50 Hz
Fuel tank capacity
265 l
Full tank working time at 100% load
10,0 mth
Wymiary netto (dłxszerxwys)
2160x1050x1530 mm
Generator net weigth
-
Silnik Diesel - PD4105ZIA2
PARAMETER VALUE DIESEL ENGINE Exhaust gases emission class
Stage II
Engine rotation speed
1500 obr/min
Number and arrangement of cylinders
Inline-four engine
Układ zasilania silnika
bezpośredni wtrysk
Exhaust gas max temperature
600 °C
Speed regulation range
0 - 1,5 %
Displacement
4,3 l
PRP power (ISO 3046)
120 kW
Electrical installation
24 VDC
PARAMETER VALUE GENERATOR Type of generator
Self-excited synchronous brushless
Number of poles / type of connection
4 / star
Uzwojenie odporne na środowisko
wilgotne / słone
Windings insulation class
H
Stopień ochrony
IP23
Voltage regulation
electronic - AVR
Stabilność napięcia
± 1 %
Short-term overload resistance
10 s (300%In)
THD (no load) < 2 %
Efficiency
91,3 %
Panel - InteliLite IL3 AMF25
